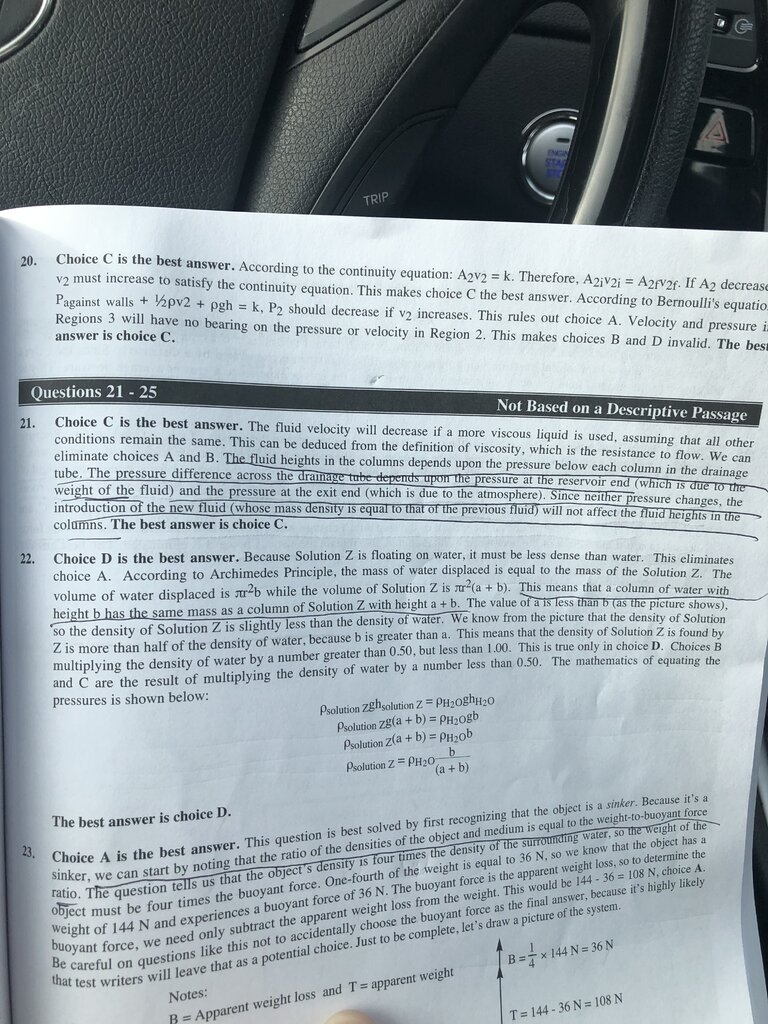

Can someone please explain the attached question and answer please? I really do not understand the solution.
Thanks!
Thanks!
You are using an out of date browser. It may not display this or other websites correctly.
You should upgrade or use an alternative browser.
You should upgrade or use an alternative browser.
TBR Physics Confusion
- Thread starter Dochopeful13
- Start date
ultravioletcat
New Member
- Joined
- Mar 22, 2019
- Messages
- 6
- Reaction score
- 3
Which question? #21? Fluid viscosity is inversely proportional to flow speed, as the layers that touch the vessel's walls slow down due to friction. Since the two fluids have the same mass density and at the two points share the same cross-sectional area (radius), there's no pressure drop. If the fluid was less dense, you'd see a rise in column 1.
- Joined
- Apr 3, 2013
- Messages
- 848
- Reaction score
- 332
Sorry I should of been clearer. It is problem 22.Which question? #21? Fluid viscosity is inversely proportional to flow speed, as the layers that touch the vessel's walls slow down due to friction. Since the two fluids have the same mass density and at the two points share the same cross-sectional area (radius), there's no pressure drop. If the fluid was less dense, you'd see a rise in column 1.
ultravioletcat
New Member
- Joined
- Mar 22, 2019
- Messages
- 6
- Reaction score
- 3
Sorry I should of been clearer. It is problem 22.
Ok, so the formula for potential energy of a fluid is density*g*height. For solution Z, the height is a+b, for water the height is b. So you have density of solution Z * g * (a+b) = density of water * g * b. Just re-arrange to find the answer.
- Joined
- Dec 5, 2017
- Messages
- 727
- Reaction score
- 477
LOL, I remember thinking "what the fork" when I first saw this entire passage.
This is exactly the type of reasoning you need to master for the MCAT, so I recommend considering both a conceptual answer and a numbers approach.
Conceptually speaking, because the fluid is not moving, the pressure of the column of solution Z on the left (with a height of a+b) must equal the pressure of water above the same baseline (giving it a height of b.) So picture in your mind Z with height (a+b) equal to water with height b.
The pressure of a column of fluid is based on rho x g x h and we know that g is a constant, so on the Z side there must be a slightly lower density (because it has a slightly higher height) than on the water side (where there is a slightly lower height.) The relative heights are equal to the relative densities, so given that a is a small number compared to b, we can see that (a+b) : b is only slightly greater than 1. The ratio of the densities of water and Z must also be that same small value of (a+b) : b, not b : a (way too big) or (a+b) : a (even bigger.)
I think their math solution is pretty good, but I personally like thinking about it conceptually.
This is exactly the type of reasoning you need to master for the MCAT, so I recommend considering both a conceptual answer and a numbers approach.
Conceptually speaking, because the fluid is not moving, the pressure of the column of solution Z on the left (with a height of a+b) must equal the pressure of water above the same baseline (giving it a height of b.) So picture in your mind Z with height (a+b) equal to water with height b.
The pressure of a column of fluid is based on rho x g x h and we know that g is a constant, so on the Z side there must be a slightly lower density (because it has a slightly higher height) than on the water side (where there is a slightly lower height.) The relative heights are equal to the relative densities, so given that a is a small number compared to b, we can see that (a+b) : b is only slightly greater than 1. The ratio of the densities of water and Z must also be that same small value of (a+b) : b, not b : a (way too big) or (a+b) : a (even bigger.)
I think their math solution is pretty good, but I personally like thinking about it conceptually.
